MIL-DTL-38999 Series III 22 Socket Olive Drab Cadmium Connector | Amphenol Equivalent

Part Number:D38999/20WC35SN

Product Description:

The MIL-DTL-38999 Series Ⅲ is a military-grade, threaded receptacle designed for applications requiring 500V and copper alloy contact material. It is designed to perform reliably in harsh environments with temperatures ranging from -55°C to +125°C and a shell finish of olive green cadmium.

The MIL-DTL-38999 Series Ⅲ receptacle has been tested to meet strict military-grade standards, and features a threaded coupling system with a voltage rating of 500V, contact material of copper alloy, and a corrosion-resistant olive green cadmium shell finish.

The MIL-DTL-38999 Series Ⅲ is designed to provide superior performance in demanding environments and is an ideal choice for applications requiring military-grade reliability, threaded coupling, and copper alloy contact material with a temperature range of -55°C to +125°C.

Features:

• Product Name: MIL-DTL-38999 Series Ⅲ Receptacle

• Operating Temperature: -55°C To +125°C

• Contact Material: Copper Alloy

• Current Rating: 7 A

• Contact Finish: Gold

• Shell Finish: Olive Green Cadmium

Technical Parameters:

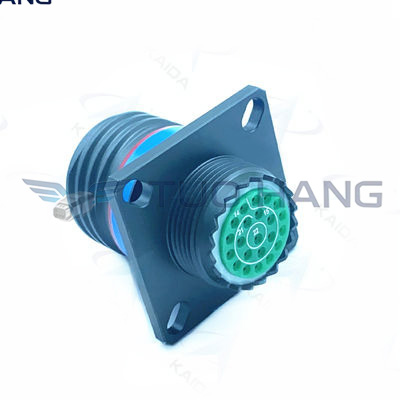

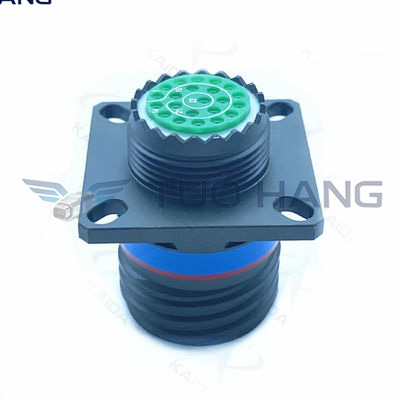

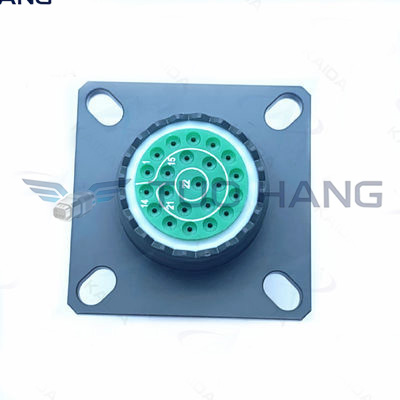

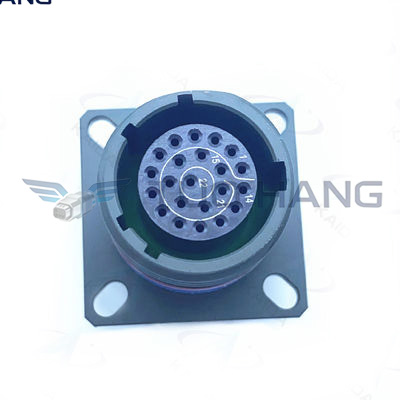

Product Pictures

Applications:

The TUO HANG D38999/20WC35SN Military-Detail 38999 Series Ⅲ connector is designed for applications in harsh environments, such as those found in military, aerospace, and industrial applications. It features a robust design with an olive green cadmium finish and a gold contact finish, offering superior corrosion resistance. This receptacle connector also features a copper alloy contact material that offers superior electrical performance in extreme temperatures. The connector is rated for up to 7A current and has 22 contacts.

Customization:

Customized Services for TUO HANG D38999/20WC35SN Military-Detail 38999 Series Ⅲ

• Brand Name: TUO HANG

• Model Number: D38999/20WC35SN

• Place of Origin: China

• Coupling Type: Threaded

• Contact Material: Copper Alloy

• Shell Finish: Olive Green Cadmium

• Connector Type: Receptacle

• Shell Size: 13

The TUO HANG D38999/20WC35SN Military-Detail 38999 Series Ⅲ is a high-quality connector with a threaded coupling and a receptacle connector type. It is made of a copper alloy and has an olive green cadmium shell finish. It is designed for military-grade applications and has a shell size of 13.

Support and Services:

MIL-DTL-38999 Series Ⅲ provides technical support and service, including product quality assurance, product proof testing, and product training.

Packing and Shipping:

MIL-DTL-38999 Series Ⅲ packaging and shipping is done according to the MIL-STD-2073-1D standard. The product should be packaged in accordance with the packing instructions specified in the applicable product document. All packaging materials must be approved by the customer and the supplier. The packing materials should be designed to protect the product from damage during transport and storage. The product must be labeled with the appropriate part number, serial number, and other identifying information. The product must be packaged in accordance with the shipping instructions specified in the applicable product document. All shipments must be accompanied by a packing list, bill of lading, and other appropriate documentation.

FAQ:

• Q: What is MIL-DTL-38999 Series Ⅲ?

• A: MIL-DTL-38999 Series Ⅲ is a series of high quality, high performance circular connectors made by TUO HANG, with model number D38999/20WC35SN, and origin from China.

• Q: What are the features of MIL-DTL-38999 Series Ⅲ?

• A: MIL-DTL-38999 Series Ⅲ has a wide range of features, including high durability, excellent electrical performance, high connection reliability, resistance to shock and vibration, and good resistance to environmental conditions.

• Q: What are the applications of MIL-DTL-38999 Series Ⅲ?

• A: MIL-DTL-38999 Series Ⅲ is widely used in aerospace, military, industrial, and commercial applications.

• Q: What is the material of MIL-DTL-38999 Series Ⅲ?

• A: MIL-DTL-38999 Series Ⅲ is made of high quality aluminum alloy and stainless steel materials.

• Q: What is the size of MIL-DTL-38999 Series Ⅲ?

• A: MIL-DTL-38999 Series Ⅲ is available in various sizes and configurations, including sizes ranging from 22 to 64 positions and cable sizes ranging from 28 AWG to 12 AWG.

•

• D38999 Series 3 Datasheet.pdf
