MIL-DTL-38999 Series II 26 Pin Bayonet Aviation Connector | Amphenol Equivalent

MIL-DTL-38999 Series Ⅱ .MS27497T16F26PB.Electroless Nickel.26 Male Pins.

Part Number:MS27497T16F26PB

Product Description:

MIL-DTL-38999 Series Ⅱ is a reliable, high-performance receptacle designed for a variety of demanding applications. This receptacle is available in shell size 16 and is made from lightweight aluminum alloy. It features gold plated contacts with a receptacle gender, making it compatible with a wide range of connectors. This receptacle is built to MIL-DTL-38999 Series Ⅱ standards and is well suited for applications requiring superior performance, durability, and quality. It is suitable for a variety of environments and is ideal for high-vibration applications. With its robust design and superior performance, MIL-DTL-38999 Series Ⅱ receptacles are an excellent choice for any application requiring reliable connectivity.

Features:

• Product Name: MIL-DTL-38999 Series Ⅱ

• Contact Material: Copper Alloy

• Current Rating: 7.5 A

• Contact Plating: Gold

• Insulator Material: Thermoplastic

• MS27497T16B26PB: Electroless Nickel

• Operating Temperature: -55 To 125 °C

• Plating: Olive Green Cadmium

Technical Parameters:

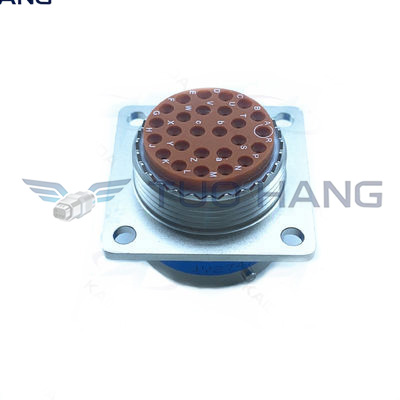

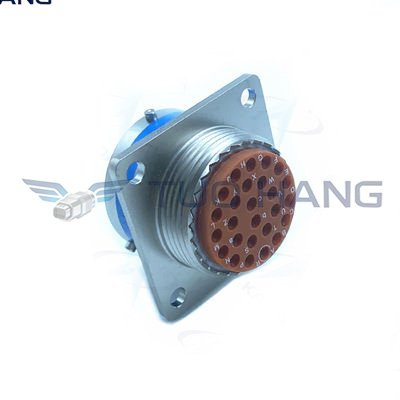

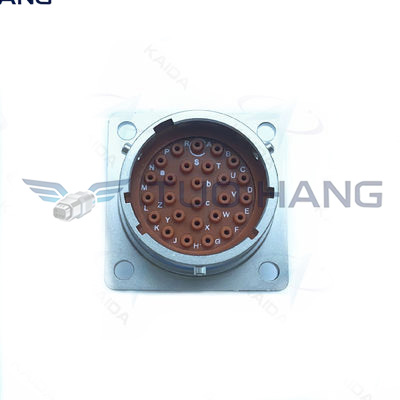

Product Pictures

Applications:

TUO HANG's MS27497T16B26PB is a MIL-DTL-38999 Series Ⅱ receptacle, which is designed to provide reliable connections in harsh environments. This MIL-DTL-38999 Series Ⅱ receptacle has 16 positions with 26 contacts and is terminated with crimp contact plating in gold. It features an Electroless Nickel finish, which helps to resist corrosion. This MIL-DTL-38999 Series Ⅱ receptacle is designed for use in industrial and military applications such as aerospace, medical, and telecommunications. Its reliability and durability make it an ideal choice for any application in need of a high-performance connection.

The MS27497T16F26PB is a MIL-DTL-38999 Series Ⅱ receptacle by TUO HANG, featuring an Electroless Nickel finish. It has 16 positions with 26 crimp contacts and gold contact plating. This highly durable and reliable MIL-DTL-38999 Series Ⅱ receptacle is suitable for a wide range of industrial and military applications, such as aerospace, medical, and telecommunications. It is a proven solution for high-performance connections in harsh environments.

Customization:

TUO HANG MIL-DTL-38999 Series Ⅱ Receptacle, MS27497T16F26PB

• Brand Name: TUO HANG

• Model Number: MS27497T16F26PB

• Place of Origin: China

• Shell Material: Aluminum Alloy

• Shell Size: 16

• Insulator Material: Thermoplastic

• Contact Plating: Gold

• Voltage Rating: 500 V

Support and Services:

MIL-DTL-38999 Series Ⅱ technical support and services include:

• Design and engineering support

• Product qualification assistance

• Production process assistance

• Lifecycle management

• Technical documentation

• Product support

• Repair and maintenance services

Packing and Shipping:

Packaging and Shipping for MIL-DTL-38999 Series Ⅱ:

This product should be properly packaged in accordance with MIL-DTL-38999 Series Ⅱ before shipment. The packaging should also meet the requirements of MIL-PRF-38999 Series Ⅱ and/or other applicable requirements. Packaging should be designed to provide protection against moisture, corrosion, dirt, dust, and other environmental factors.

The product should be properly labeled with the necessary information, including the manufacturer's name, part number, date of manufacture, and the applicable MIL-DTL-38999 Series Ⅱ requirements. The package should be sealed securely to provide adequate protection during shipment.

FAQ:

• Q: What is the brand name of MIL-DTL-38999 Series Ⅱ?

• A: The brand name of MIL-DTL-38999 Series Ⅱ is TUO HANG.

• Q: What is the model number of MIL-DTL-38999 Series Ⅱ?

• A: The model number of MIL-DTL-38999 Series Ⅱ is MS27497T16F26PB.

• Q: Where is MIL-DTL-38999 Series Ⅱ made?

• A: MIL-DTL-38999 Series Ⅱ is made in China.

• Q: What kind of product is MIL-DTL-38999 Series Ⅱ?

• A: MIL-DTL-38999 Series Ⅱ is a type of electrical connector.

• Q: What are the application fields of MIL-DTL-38999 Series Ⅱ?

• A: MIL-DTL-38999 Series Ⅱ is widely used in aerospace, military, and other harsh environment applications.

•

• D38999 Series 2 Datasheet.pdf
