MS3114E8-4S MIL-DTL-26482 Series 1 Jam Nut Circular Connector | Amphenol Equivalent

Secure and Reliable MIL-DTL-26482 Series I Connector.MS3114E8-4S.4 Female Pins. Jam Nut Receptacle.Olive Green Cadmium

Part Number:MS3114E8-4S

Product Description:

MIL-DTL-26482 Series I is a miniature connector designed to meet the rigorous requirements of military applications. It features a jam nut receptacle with an olive green cadmium finish and an aluminum alloy coupling nut. This Series I connector is available in shell size 08 and is designed to provide superior environmental protection and reliable electrical performance. The MIL-DTL-26482 Series I is ideal for applications in harsh and extreme environments, ensuring secure and dependable connections.

Features:

• Product Name: MIL-DTL-26482 Series Ⅰ

• Coupling Nut Material: Aluminum Alloy

• Number of Contacts: 4

• Shell Finish: Cadmium Olive Drab

• Gender: Receptacle

• Jam Nut Receptacle

• Current Rating: 7.5 A

Technical Parameters:

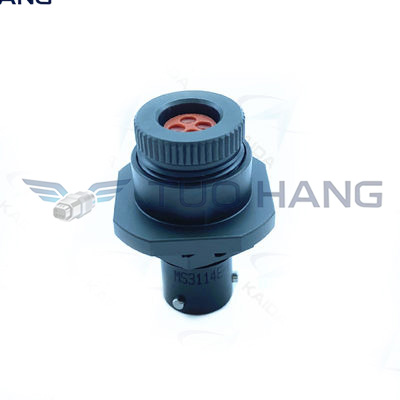

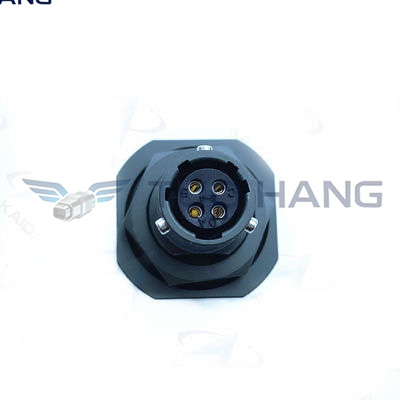

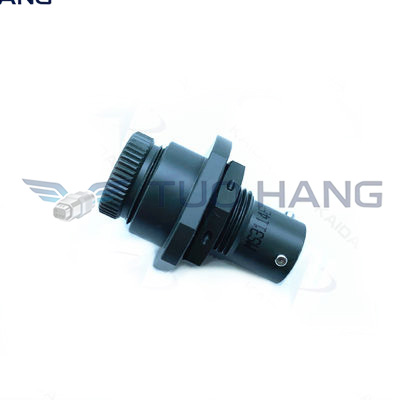

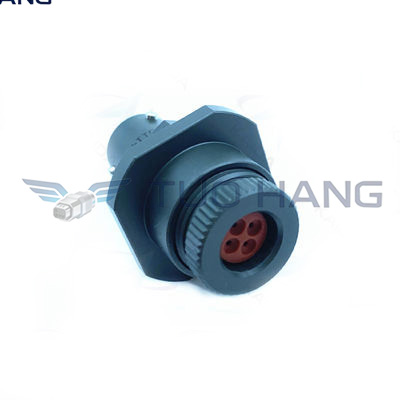

Product Pictures

Applications:

TUO HANG MS3114E8-4S Receptacle Connector from China is an ideal product for a wide range of applications. It is made of high quality aluminum alloy with olive drab cadmium, ensuring its superior strength and durability. This MIL-DTL-26482 Series I connector is specifically designed to provide a secure connection with a voltage rating of 500V. It is equipped with crimp contact termination and meets the high-performance standards of the industry. This reliable receptacle connector is perfect for rugged and harsh environments and is guaranteed to provide a strong and reliable connection.

Customization:

TUO HANG MS3114E8-4S Jam Nut Receptacle, MIL-DTL-26482 Series Ⅰ

• Place of Origin: China

• Number of Contacts: 4

• Contact Termination: Crimp

• Current Rating: 7.5 A

• Coupling Nut Material: Aluminum Alloy

• Shell Material: Aluminum Alloy

• Olive Drab cadmium plated per MIL-DTL-13924

Support and Services:

MIL-DTL-26482 Series Ⅰ Technical Support and Service

• On-site personnel training on installation, operation, and maintenance

• 24/7 technical support over the phone, email, and web

• On-site troubleshooting and repair

• Access to technical documents and software updates

• Factory-certified parts and components

Packing and Shipping:

MIL-DTL-26482 Series Ⅰ Packaging and Shipping:

• Each product must be packaged in accordance with MIL-STD-2073-1.

• The product must be shipped in accordance with MIL-STD-129P.

• The product must be labeled with the MIL-STD-129P labeling requirements.

• The product must be shipped in accordance with MIL-STD-130U.

• The product must be labeled with the MIL-STD-130U marking requirements.

FAQ:

• Q: What is MIL-DTL-26482 Series Ⅰ?

• A: MIL-DTL-26482 Series Ⅰ is a waterproof and dustproof circular connector, manufactured by TUO HANG and model MS3114E8-4S. It is made in China.

• Q: What are the features of MIL-DTL-26482 Series Ⅰ?

• A: MIL-DTL-26482 Series Ⅰ has a shell made from aluminium and is thermoplastic elastomer sealed, which makes it resistant to dust and water. It also has an operating temperature range of -55℃ to +125℃ and a current rating up to 6A.

• Q: What is the application of MIL-DTL-26482 Series Ⅰ?

• A: MIL-DTL-26482 Series Ⅰ is a widely used in military, aerospace, communications, medical, industrial and other fields.

• Q: What is the advantage of MIL-DTL-26482 Series Ⅰ?

• A: MIL-DTL-26482 Series Ⅰ has a reliable connection, good electrical performance and high durability.

• Q: What is the certification of MIL-DTL-26482 Series Ⅰ?

• A: MIL-DTL-26482 Series Ⅰ has obtained UL certification.

•
