MIL-DTL-26482 Circular Connector | Olive Drab Cadmium Plating, High-Reliability Aviation Plug

Circular MIL-DTL-26482 Connector .Olive Drab Cadmium Plating.MS3470W14-4SW.Narrow Flange Receptacle.

Part number:MS3470W14-4SW

Product Description:

MIL-DTL-26482 Series Ⅱ is a narrow flange receptacle designed to meet the requirements of MIL-DTL-26482. It is available in MS3470 and MS3470W14-4SW types, and features an operating temperature range of -55°C to +125°C. This series is designed with a receptacle gender and an olive green cadmium finish, and has a current rating of 7.5A. With its high-performance design and reliable connection, MIL-DTL-26482 Series Ⅱ is ideal for use in many military, aerospace, and industrial applications.

Features:

• Product Name: MIL-DTL-26482 Series Ⅱ

• Connector Type: Circular Receptacle

• Model: MS3470W14-4SW

• Type: Narrow Flange Receptacle

• Number of Contacts: 19

• Voltage Rating: 500V

Technical Parameters:

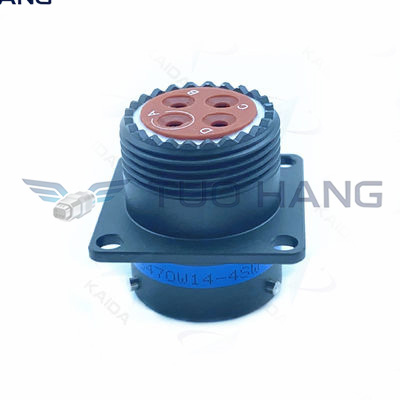

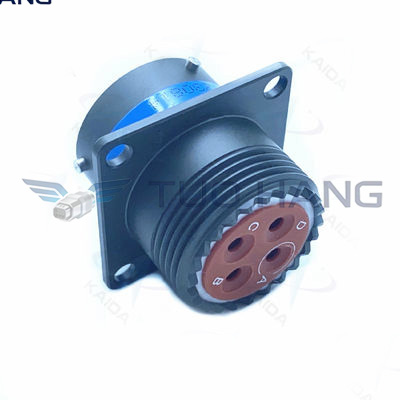

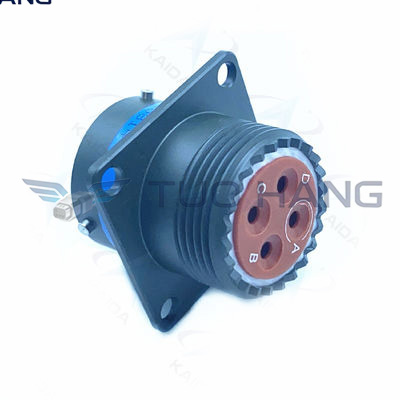

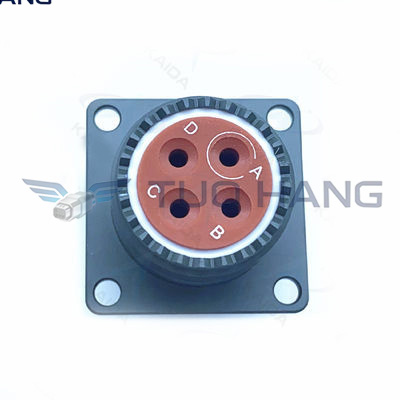

Product Pictures

Applications:

The MS3470, MIL-DTL-26482 Series Ⅱ connector, manufactured by TUO HANG, is a narrow flange receptacle connector. It has a current rating of 7.5A and a voltage rating of 500V. The contact finish is gold and it is a receptacle gender connector. This connector is ideal for applications that require a high level of security and reliability. It is suitable for high-voltage, high-current applications such as aerospace, military, medical, industrial, and automotive industries. The connector is available with a variety of mounting options to suit different installation environments.

The MS3470 MIL-DTL-26482 Series Ⅱ connector offers outstanding electrical and mechanical performance. It is designed to provide a secure, reliable connection between two devices. The connector is RoHS compliant and meets the most stringent safety and environmental standards. It is perfect for applications where space is limited, and where a durable, reliable product is needed.

The MS3470 MIL-DTL-26482 Series Ⅱ connector from TUO HANG is an excellent choice for a variety of applications. It is reliable, robust, and cost-effective, making it the ideal connector for any application.

Customization:

TUO HANG MIL-DTL-26482 Series Ⅱ Narrow Flange Receptacle, Model MS3470W14-4SW

Place of Origin: China
Gender: Receptacle
Contact Type: Crimp
Contact Finish: Gold
Voltage Rating: 500V


Support and Services:

MIL-DTL-26482 Series Ⅱ Technical Support and Services include:

• Development and manufacture of MIL-DTL-26482 Series Ⅱ connectors

• Inspection and testing of MIL-DTL-26482 Series Ⅱ connectors

• Installation and configuration of MIL-DTL-26482 Series Ⅱ connectors

• Maintenance and repair of MIL-DTL-26482 Series Ⅱ connectors

• Providing technical support and troubleshooting assistance

• Providing user manuals and documentation

• Offering training and certification courses

Packing and Shipping:

The MIL-DTL-26482 Series Ⅱ products are packaged in accordance with the requirements of MIL-DTL-26482 Series II. The product is shipped in sealed containers and wrapped in moisture-proof wrapping. The packaging and shipping materials are designed to protect the product from damage during transit.

FAQ:

Q1: What is MIL-DTL-26482 Series Ⅱ?

A1: MIL-DTL-26482 Series Ⅱ is a standard for circular connectors used in aerospace and defense industries, developed by U.S. military and adopted by NATO. The standard is designed to withstand severe environmental conditions.

Q2: What is the brand and model of MIL-DTL-26482 Series Ⅱ?

A2: The brand is TUO HANG and the model number is MS3470W14-4SW.

Q3: Where is MIL-DTL-26482 Series Ⅱ produced?

A3: MIL-DTL-26482 Series Ⅱ is produced in China.

Q4: What are the advantages of MIL-DTL-26482 Series Ⅱ?

A4: MIL-DTL-26482 Series Ⅱ has a robust design and is equipped with ruggedized contacts, seals, and shells that make it suitable for extreme environmental conditions. It is also resistant to shock, vibration, and moisture.

Q5: What materials are used in MIL-DTL-26482 Series Ⅱ?

A5: MIL-DTL-26482 Series Ⅱ is made of copper alloy, zinc alloy, and PBT.
