J30-9TJL Micro-D Rectangular Connector | 9-Pin MIL-DTL-83513 Equivalent Aviation Connectors

2
MOQ
10$-50$
Price
J30-9TJL Micro-D Rectangular Connector | 9-Pin MIL-DTL-83513 Equivalent Aviation Connectors
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.
J30-9TJL
Application
Connector
Certification
ISO 9001
Terminal Material
Silver-Plated Copper
Interface Type
Same as The Picture Shown
Custom
Support OEM and ODM
Ambient Temperature
-55℃~+125
Vibration
10Hz~ 2000Hz 196m/S²
Dilectric Withstand Voltage
600V
Durability
500 Times
Transport Package
Box
Specification
J30 Connector
Trademark
TUO HANG
Origin
China
HS Code
8547901000
Production Capacity
5000/Month


Basic Infomation
Place of Origin:China
Brand Name:TUO HANG
Certification:AS9001&GJB9001
Model Number:J30-9tjl Micro-D
Payment & Shipping Terms
Packaging Details: Standard Export Package
Delivery Time: 1-4 Weeks
Payment Terms: L/C, T/T
Supply Ability: 100000
Product Description

J30-9TJL Micro-D Rectangular Connector | 9-Pin MIL-DTL-83513 Equivalent Aviation Connectors

Features:
1. J30 connectors are compatible with USA MDM/MIL-DTL-83513 connectors;
2. J30 Connectors can be divided into 5 types according to the number of pins: 9pin, 15pin, 21pin, 25pin, 31pin, 37pin, 51pin;
3. The section area of suitable cable is 0.1-0.15 mm²;
4. These connectors meet the requirements of GJB2446 (equivalent to MIL-DTL-83513);

5. The performance standard: Q/Ln.J6-69-92 J30 Series Miniature Rectangular Electronic Connector Technical Condition;

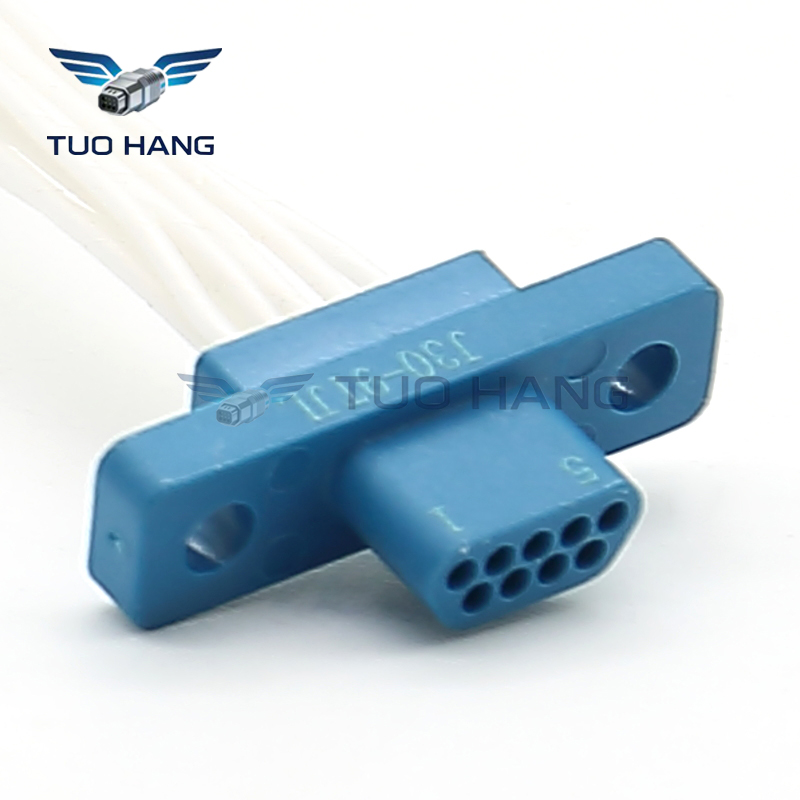

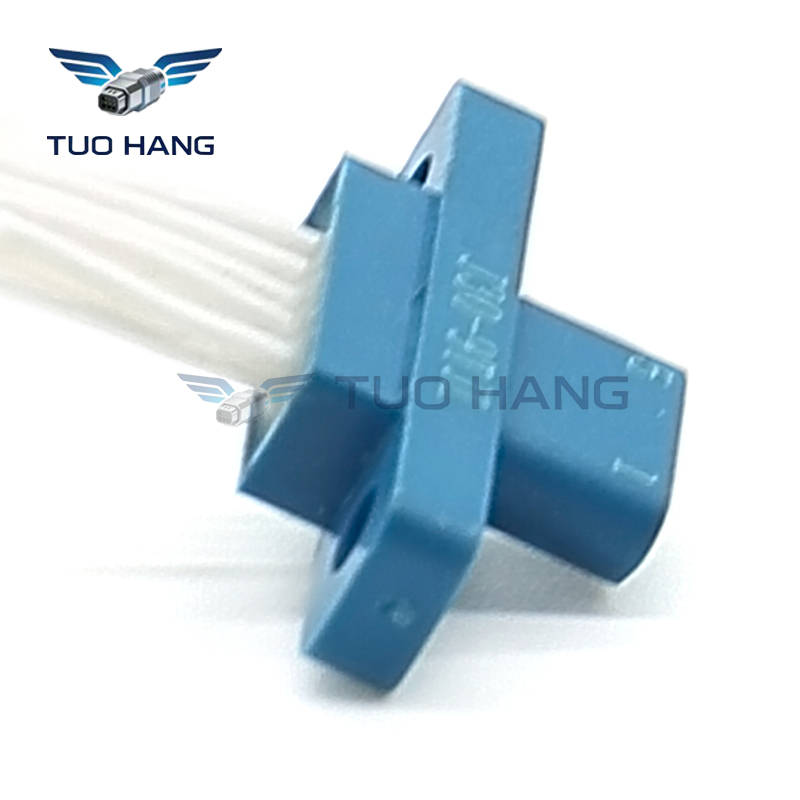

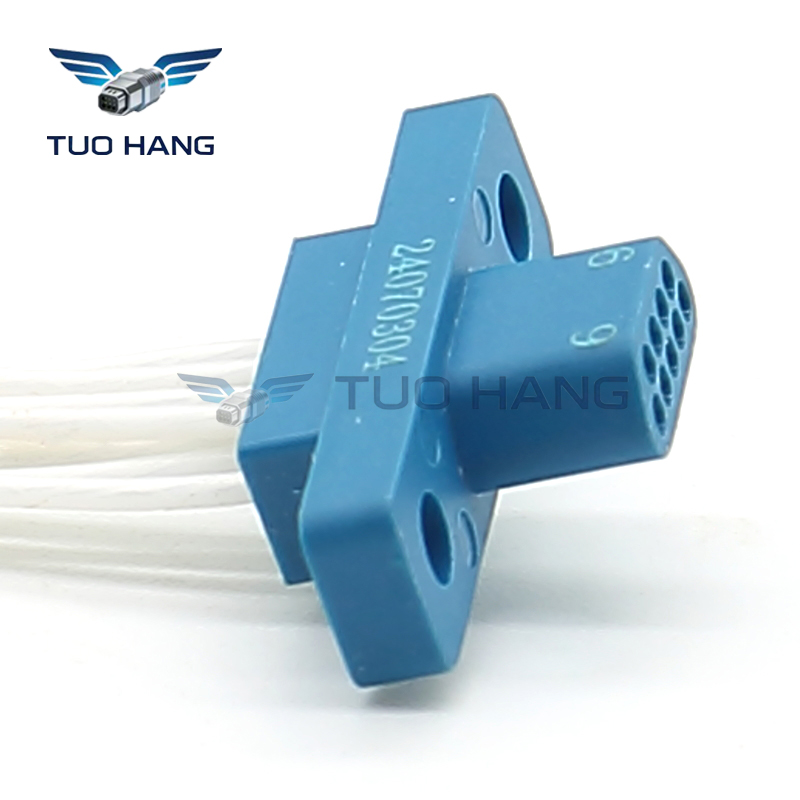

J30-9TJL-280MM (1).jpg

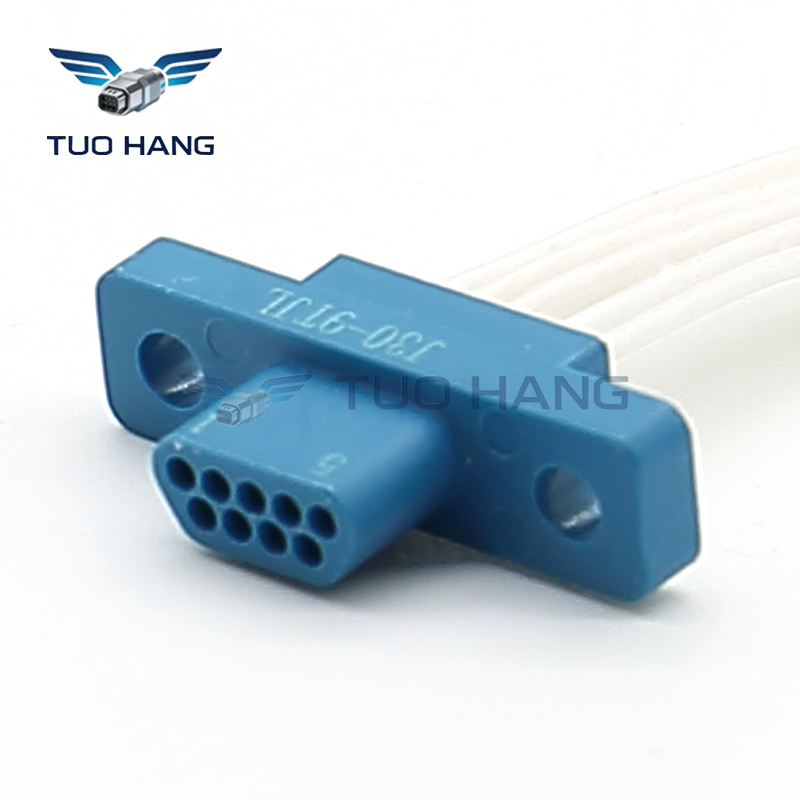

J30-9TJL-280MM (2).jpg

J30-9TJL-280MM (3).jpg

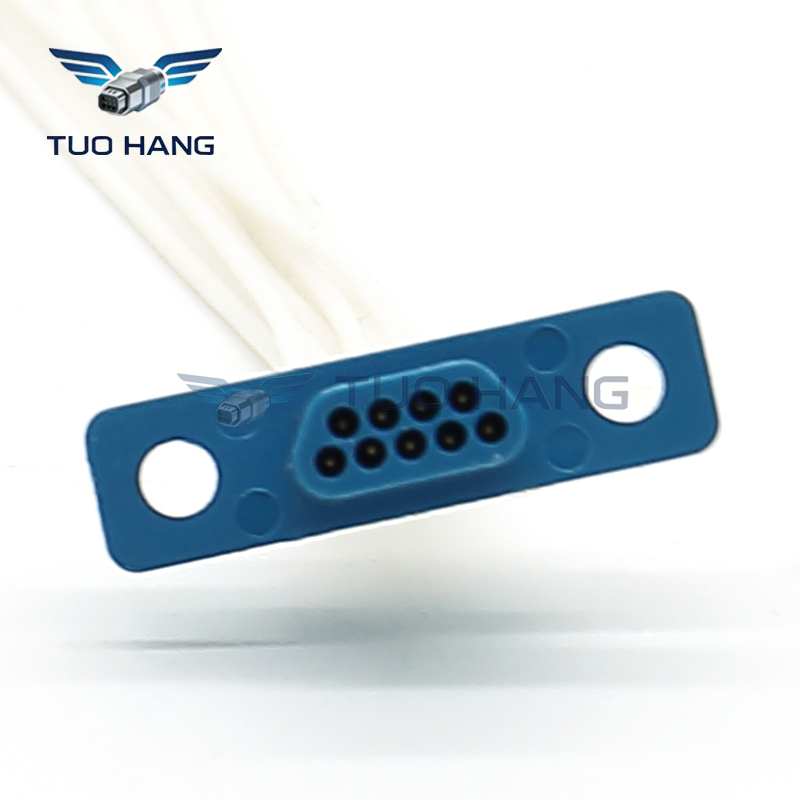

J30-9TJL-280MM (4).jpg

J30-9TJL-280MM (5).jpg


Application:
The product has the advantages of high density, lightweight and miniaturization, which can realize the reliable interconnection of the electrical circuit system from cable to cable, cable to printed board, and between printed board and printed board.
The product can withstand strong vibration, shock and other harsh operating environment,especially suitable for the use in space; equipment lightweight has special requirements for the use of the occasion.
